Power with Portability

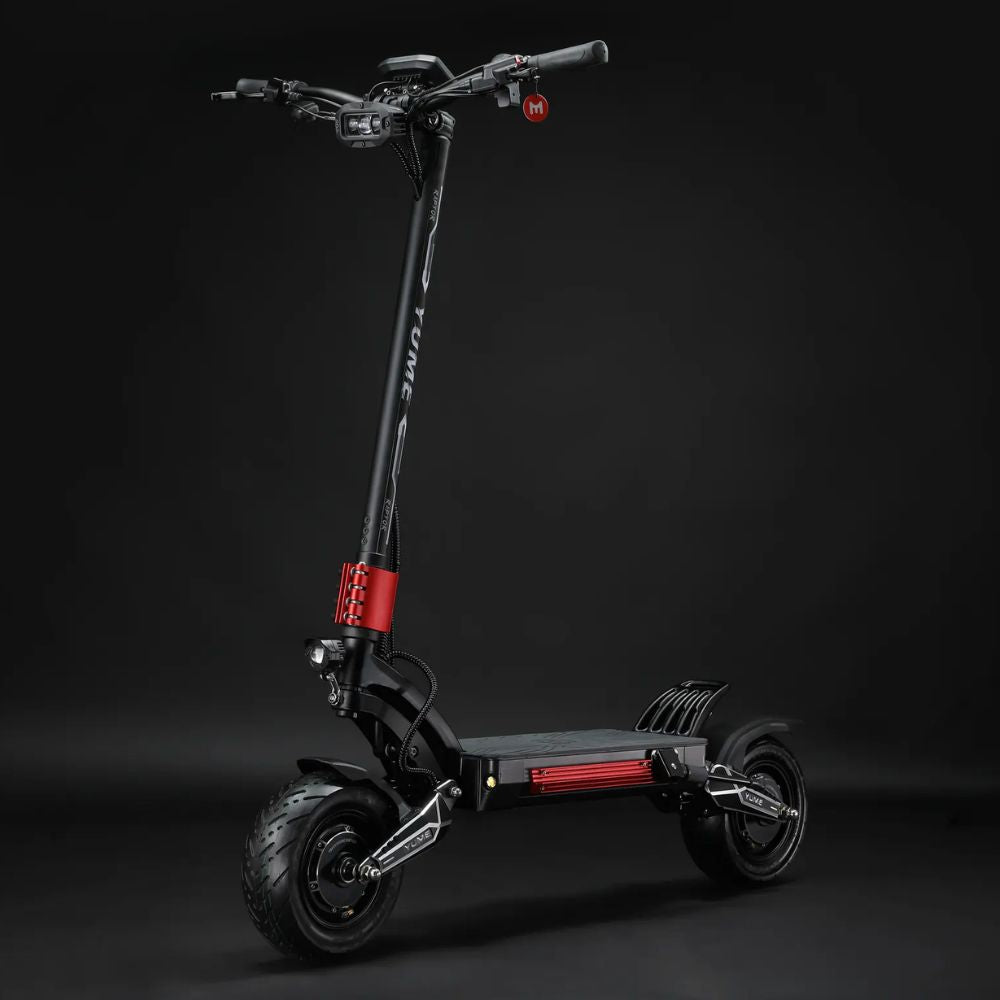

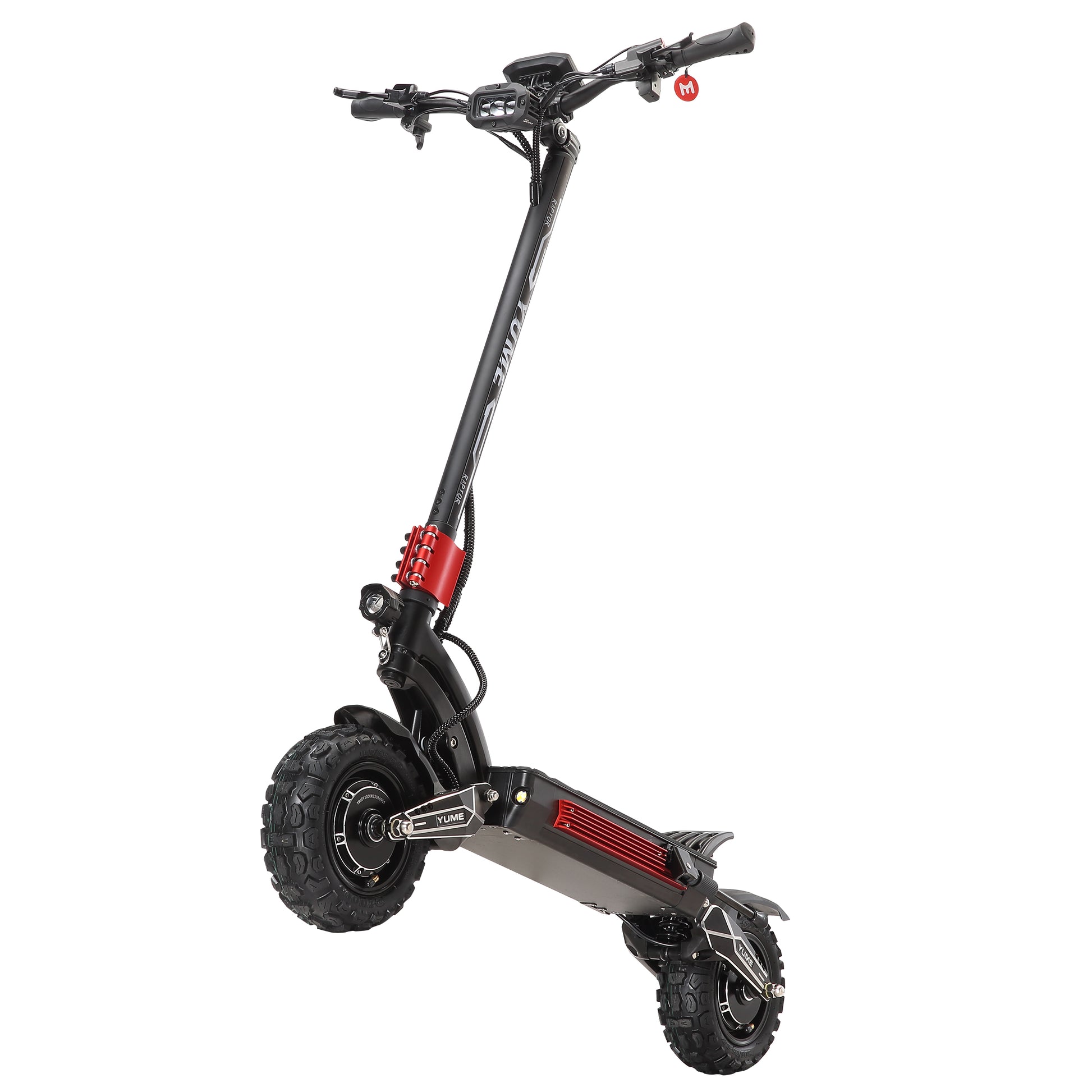

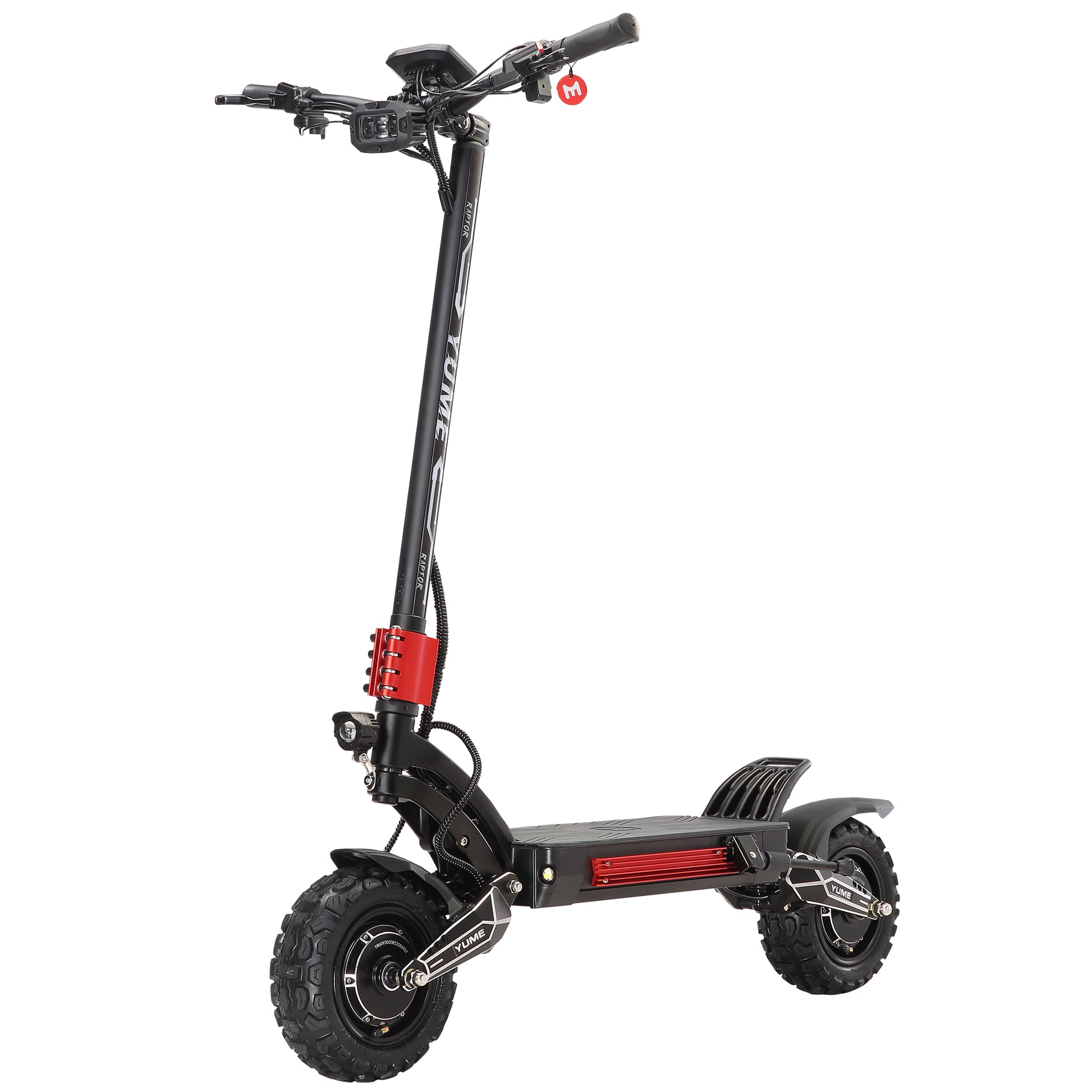

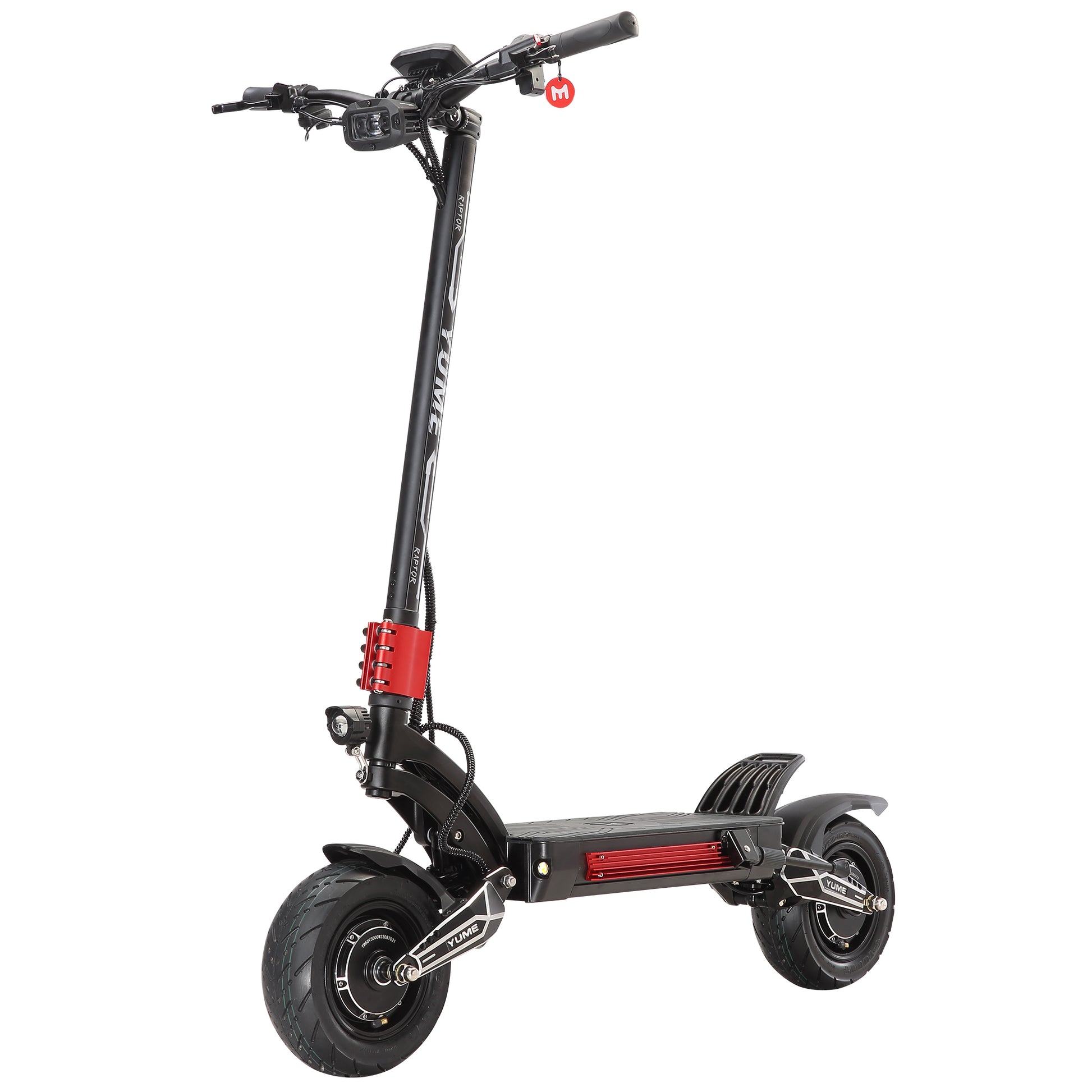

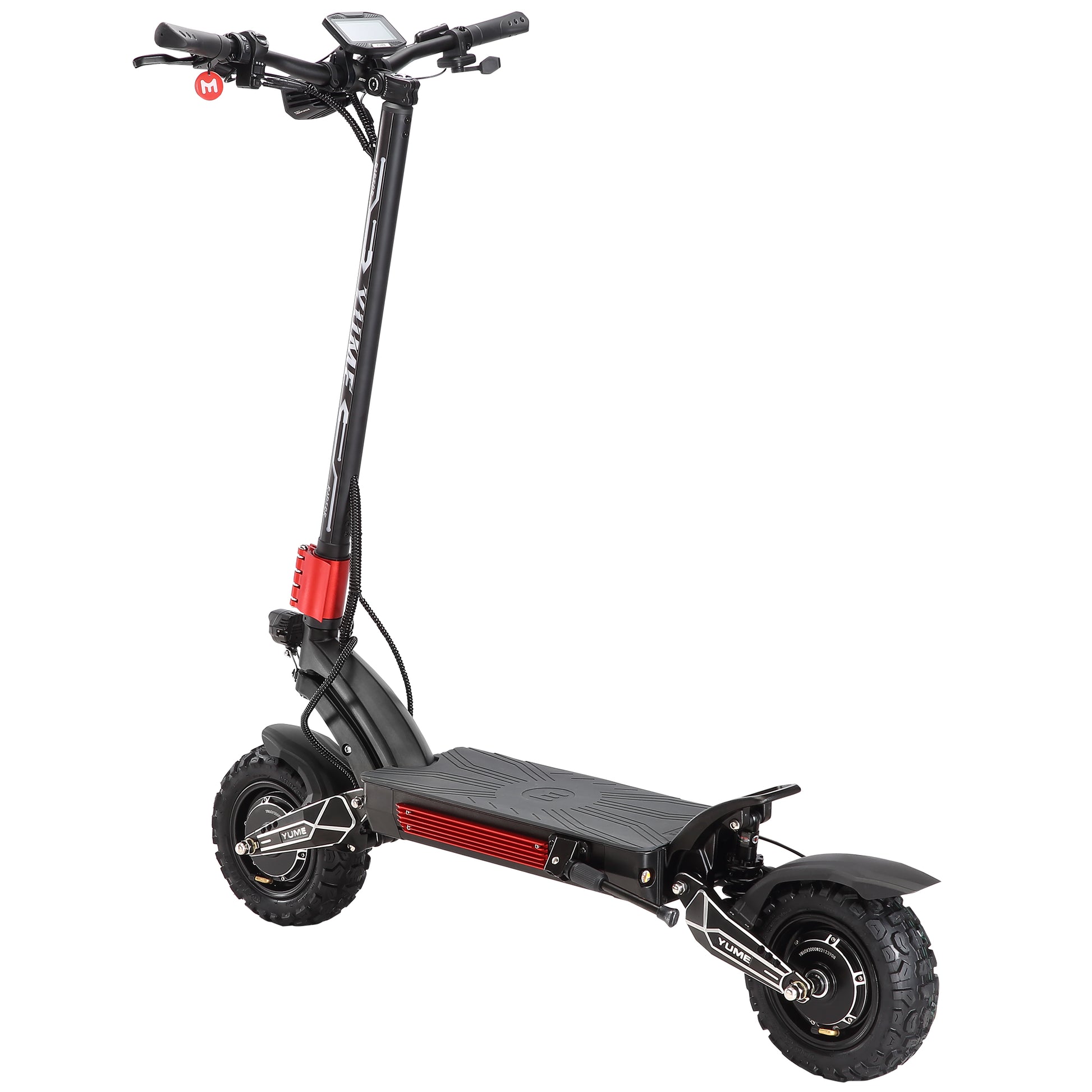

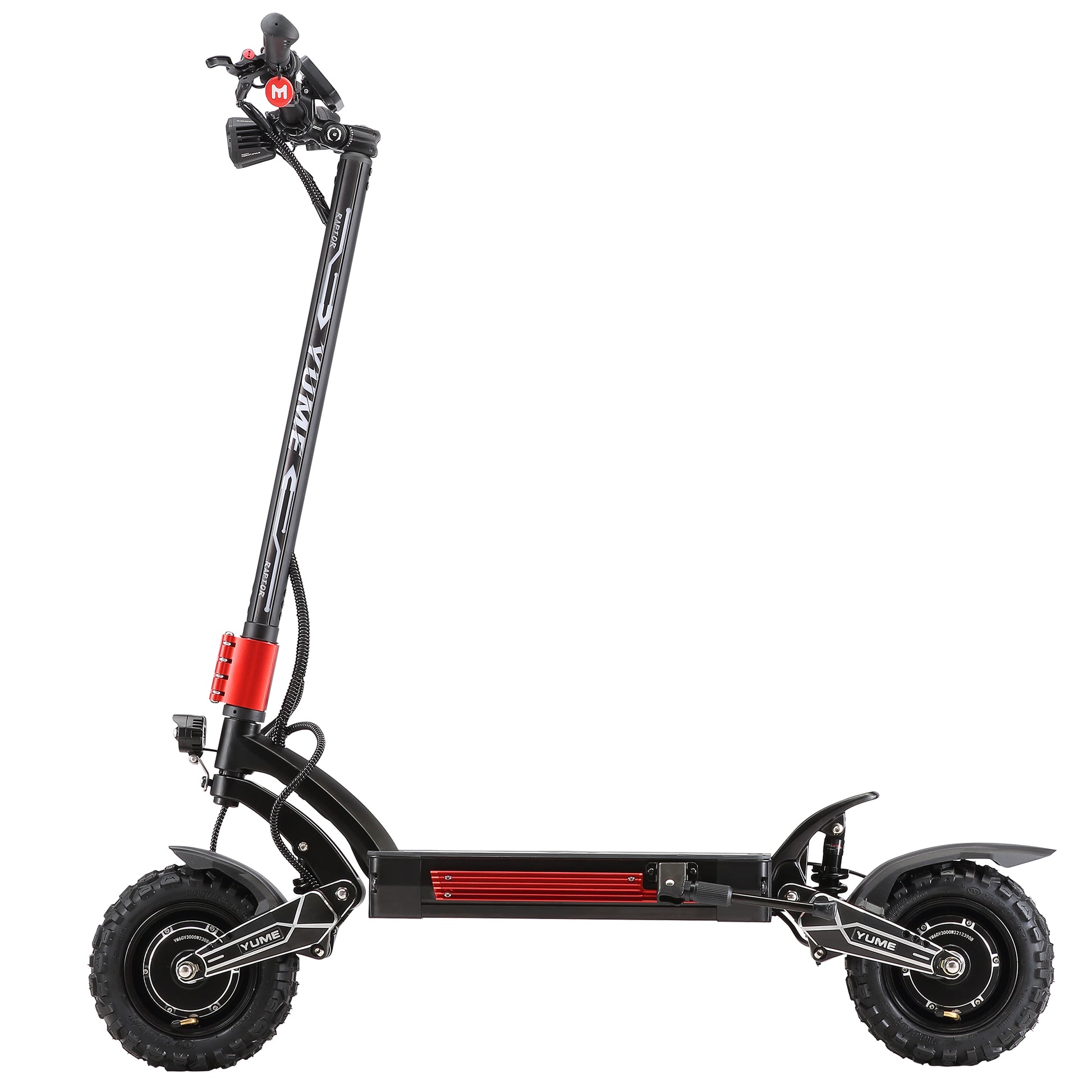

The all-new YUME Raptor stands out as a performance mid-sized electric scooter with 11-inch tires and dual drive motors offering 6000W of outstanding performance. Whether you're exploring all-terrain trails or navigating city streets, the Raptor will deliver a smooth and exhilarating ride every time.

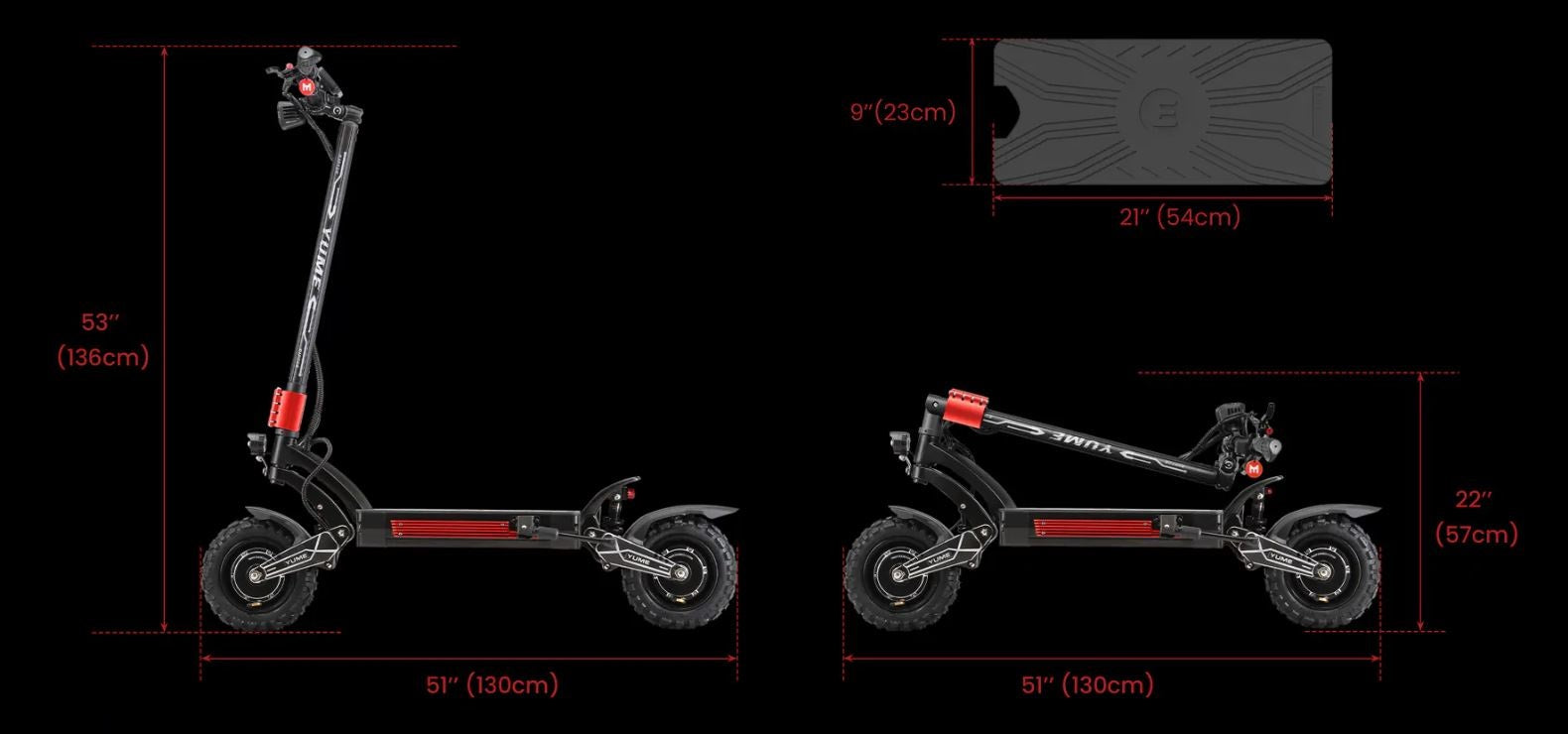

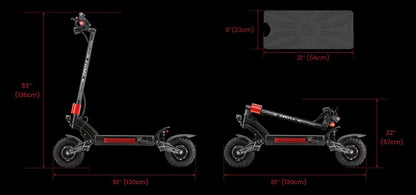

Power with Compact: The Raptor weighs in at 41kg and folds down into a compact footprint measuring 51"x 20"x 9”. It will fit into the trunk of a car for transportation, allowing you to embrace the call of adventure far from home whenever inspiration strikes.

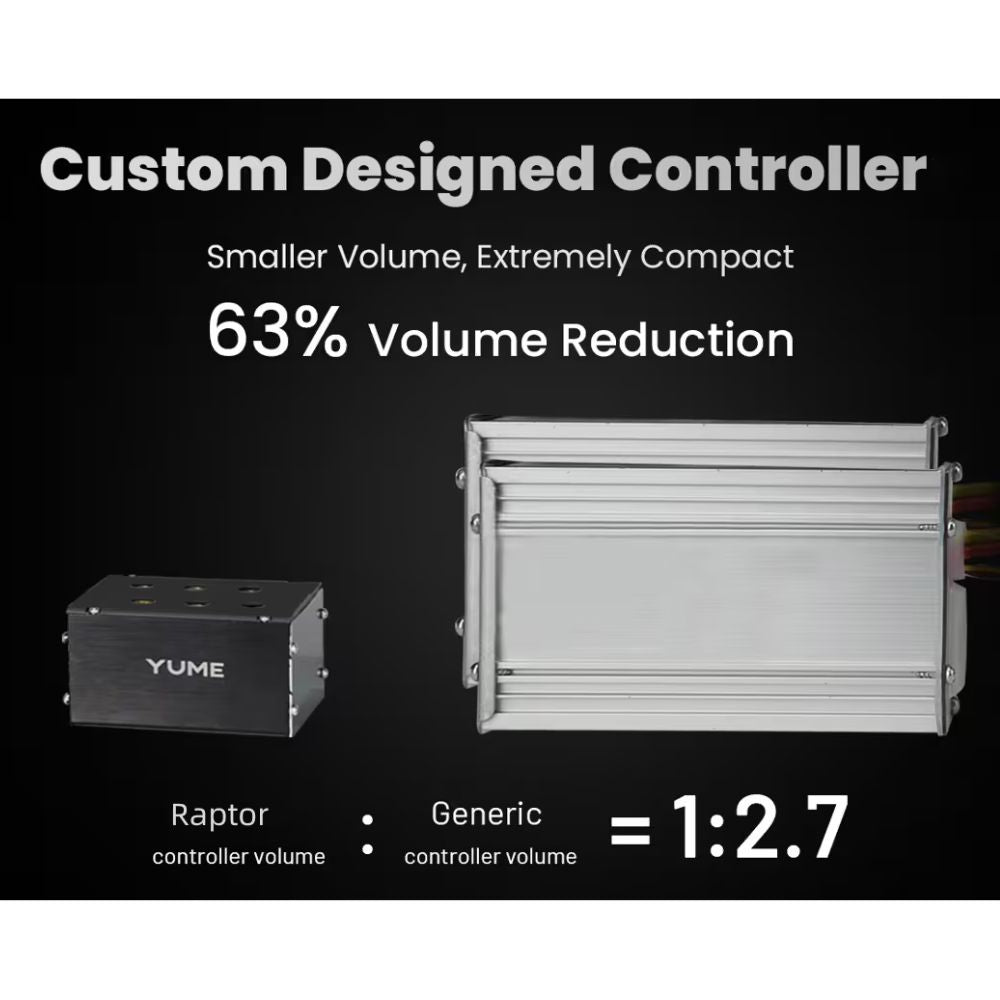

Power & Controller: Driving the dual motors with a peak power output of 6000W is a specially customized Super 6 MOSFET Sine Wave controller running at 60V. The controller is extremely compact and has been tuned to give the best possible performance without sacrificing range. The Raptor offers generous torque required to power the motors, which accommodate large 11-inch tires.

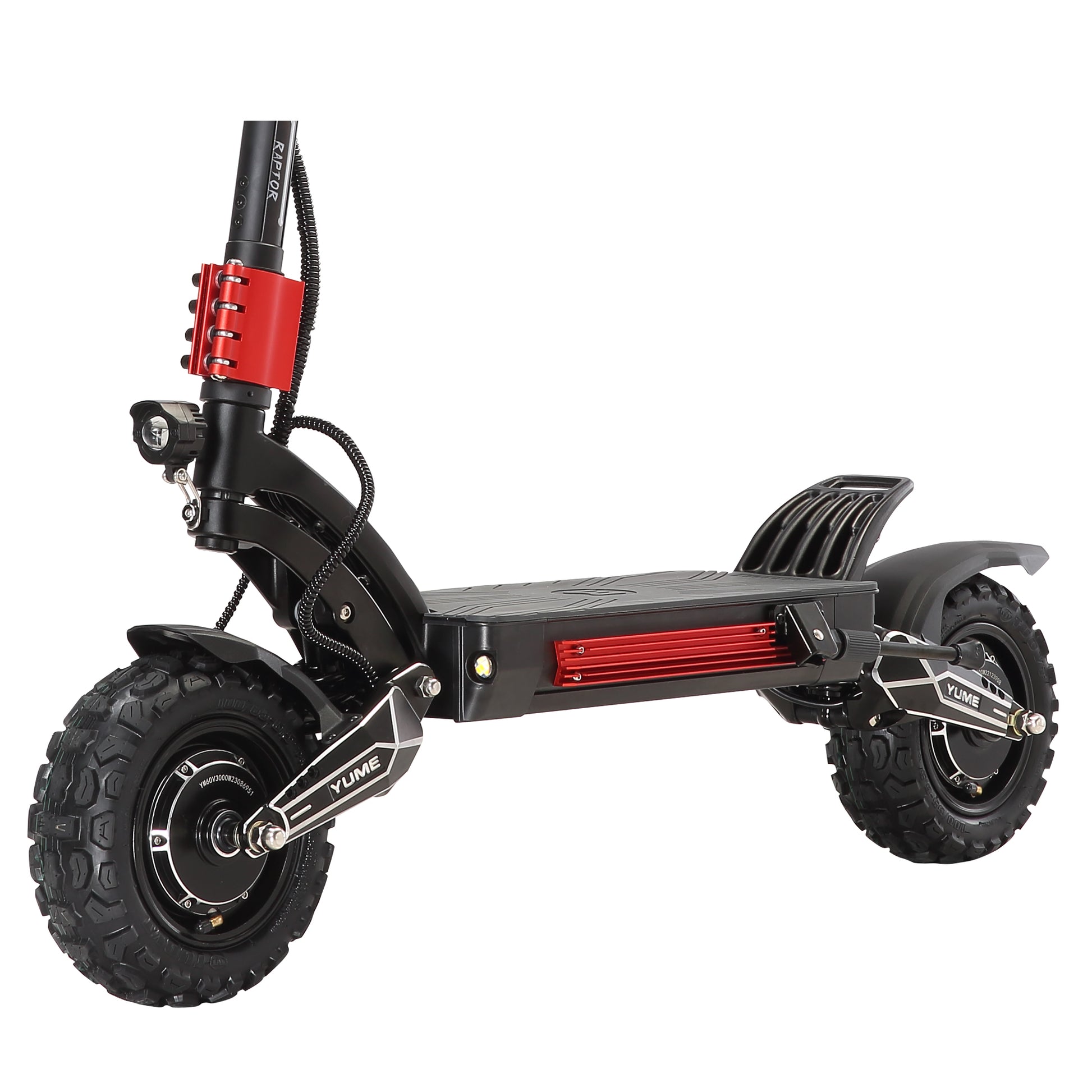

Frame: Crafted as a single piece from high-quality 6061 aerospace aluminum and utilizing a high-quality forging process, the YUME Raptor takes its design cues from its big brother, the Predator.

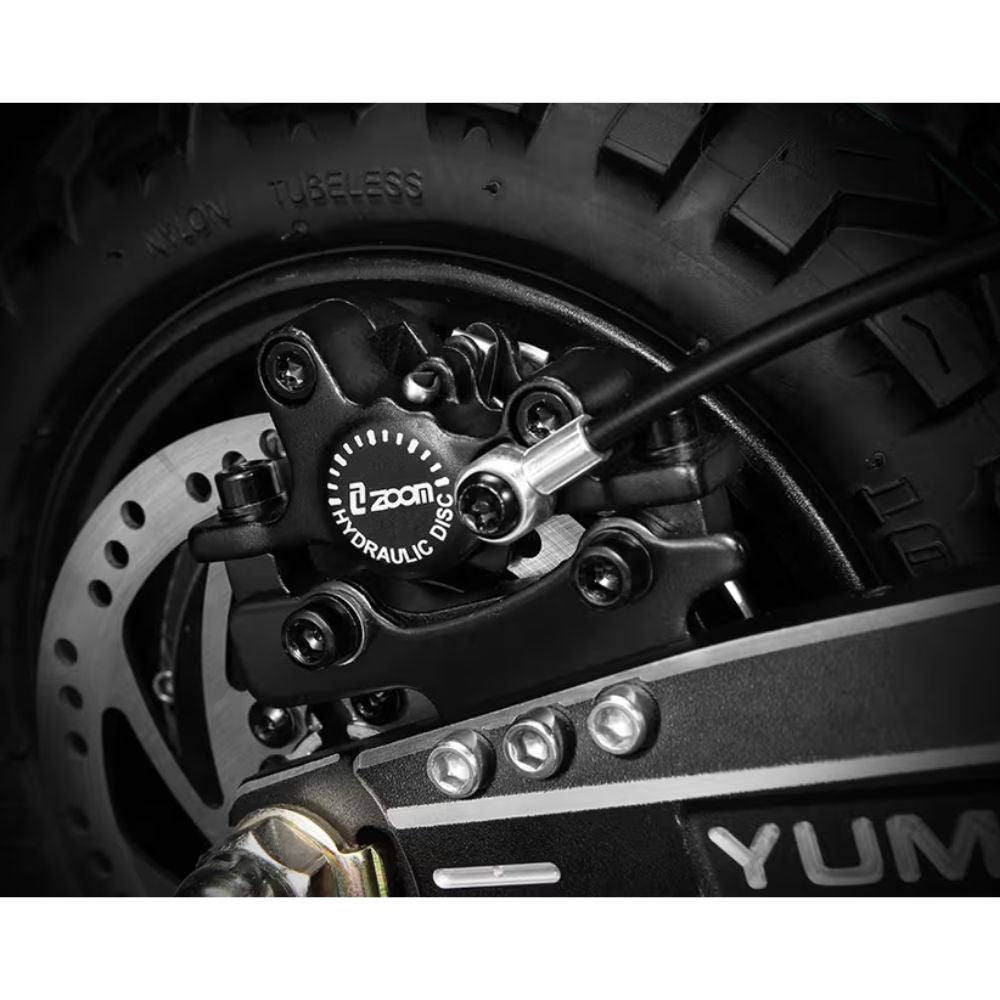

EBS & Hydraulic Disk Brakes: The Raptor is equipped with both front and rear ZOOM hydraulic disc brakes paired with 140mm disc rotors. A highly sensitive electronic braking system (EBS) works in conjunction with the hydraulic brakes for additional stopping power on demand. This EBS utilizes the motors to reduce speed in a controlled manner when pressure is applied to the brake levers. Once applied, it activates almost instantly (within 0.1 seconds), offering additional stopping power to the mechanical brakes.

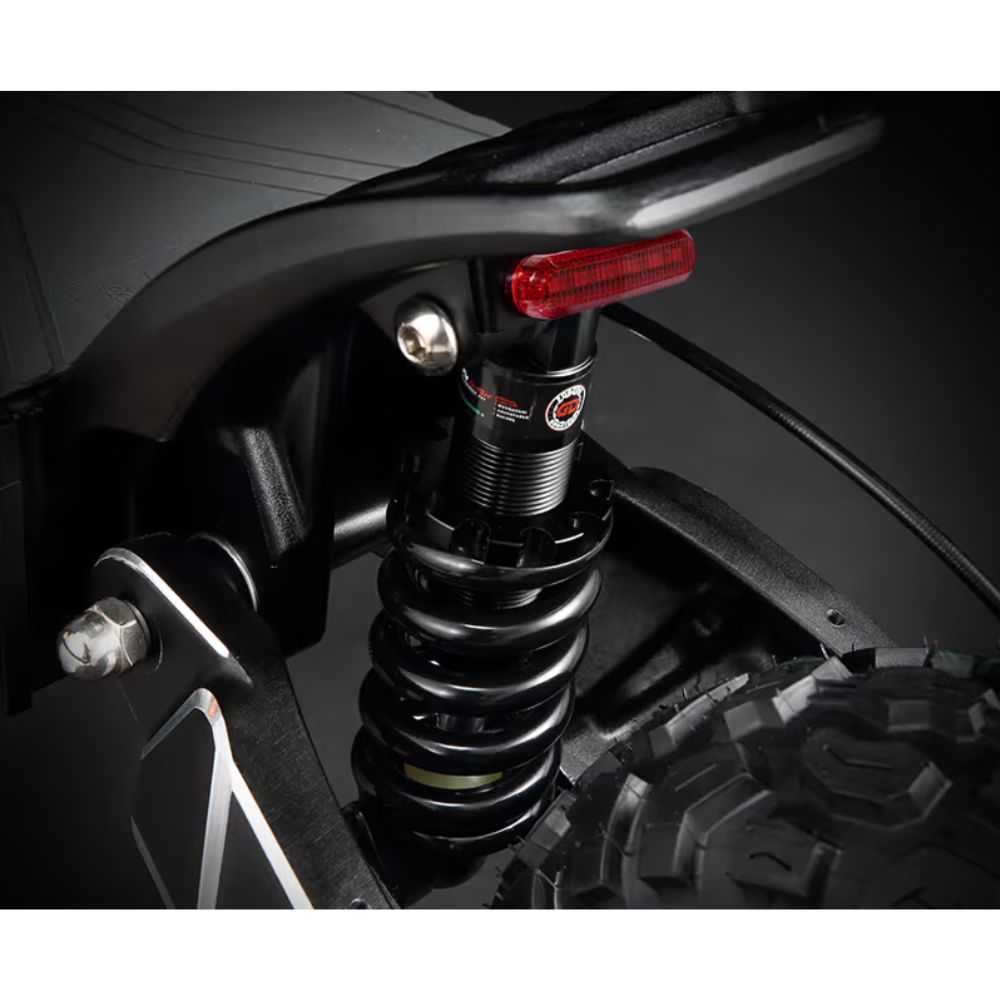

Suspension: The Raptor boasts a suspension system utilizing hydraulic shock absorbers. The front wheel features a 135mm shock, and the rear employs a 165mm shock absorber. Max load capacity is 330lbs. The ride offered is extremely nimble, stable, and smooth when combined with the large 11-inch tires. The Raptor easily conquers any terrain in its path.
Specifications:

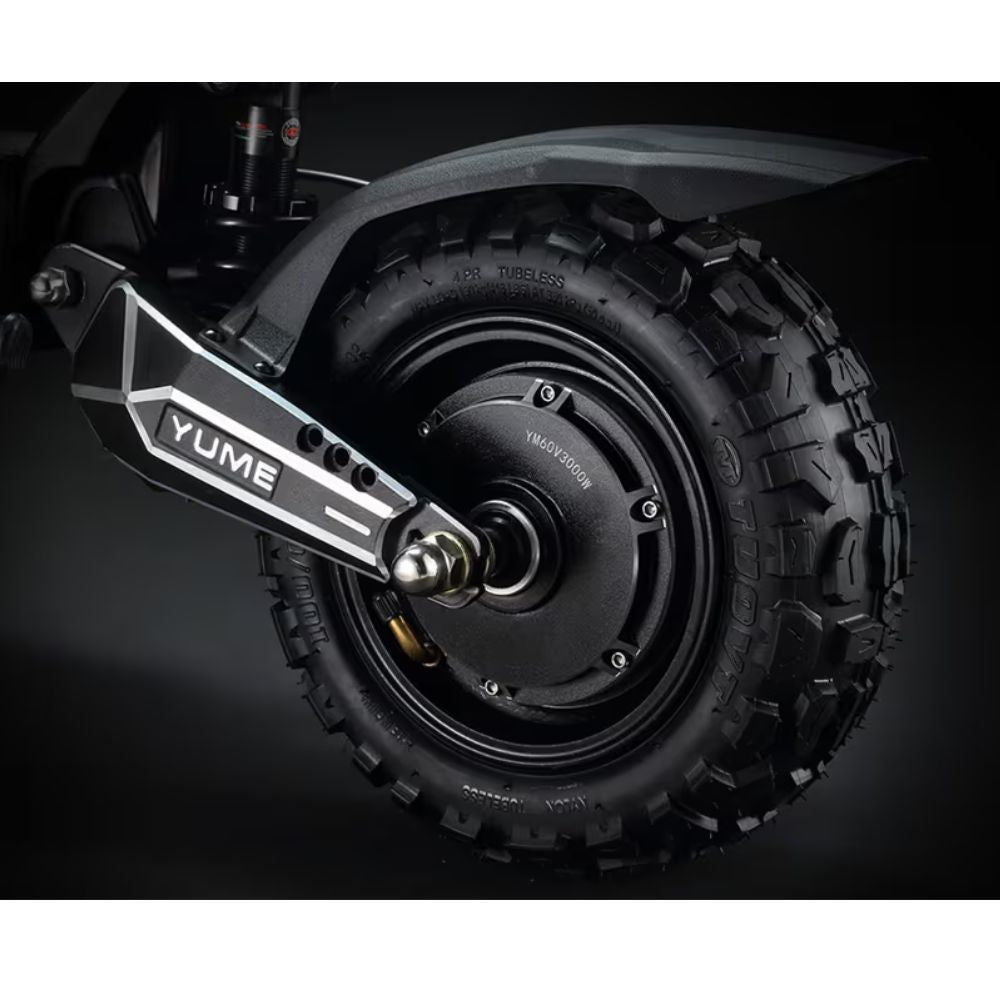

- Motors: 2 x 3000-watt brushless DC motors with hall sensors, peaking at just over 6000W in total output

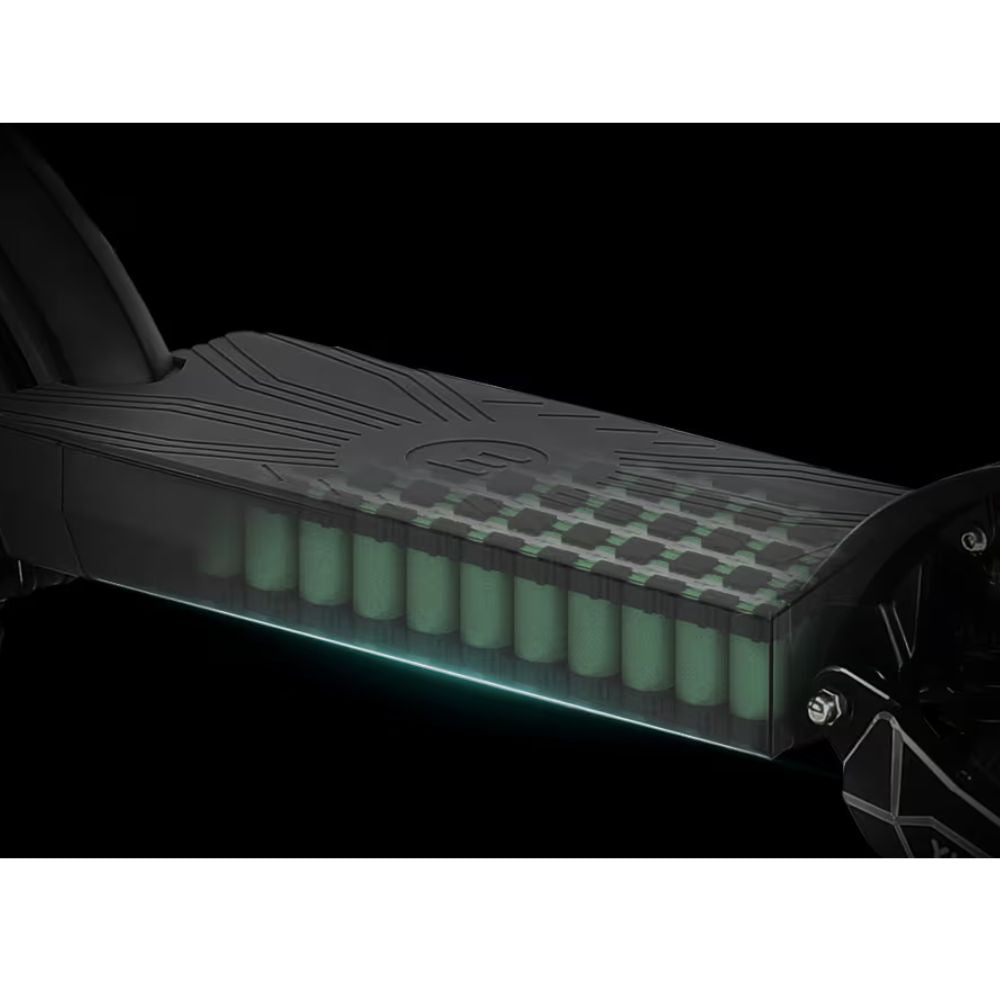

- Standard battery and range: 60V 27AH / 90km (56 Miles)*
- Samsung battery and range: 60V 30AH / 96km (60 Miles)*
- Chargers: 2 x standard 60V 2A chargers included / Dual charging ports on the scooter
- Hill climb angle: 35-40 degrees

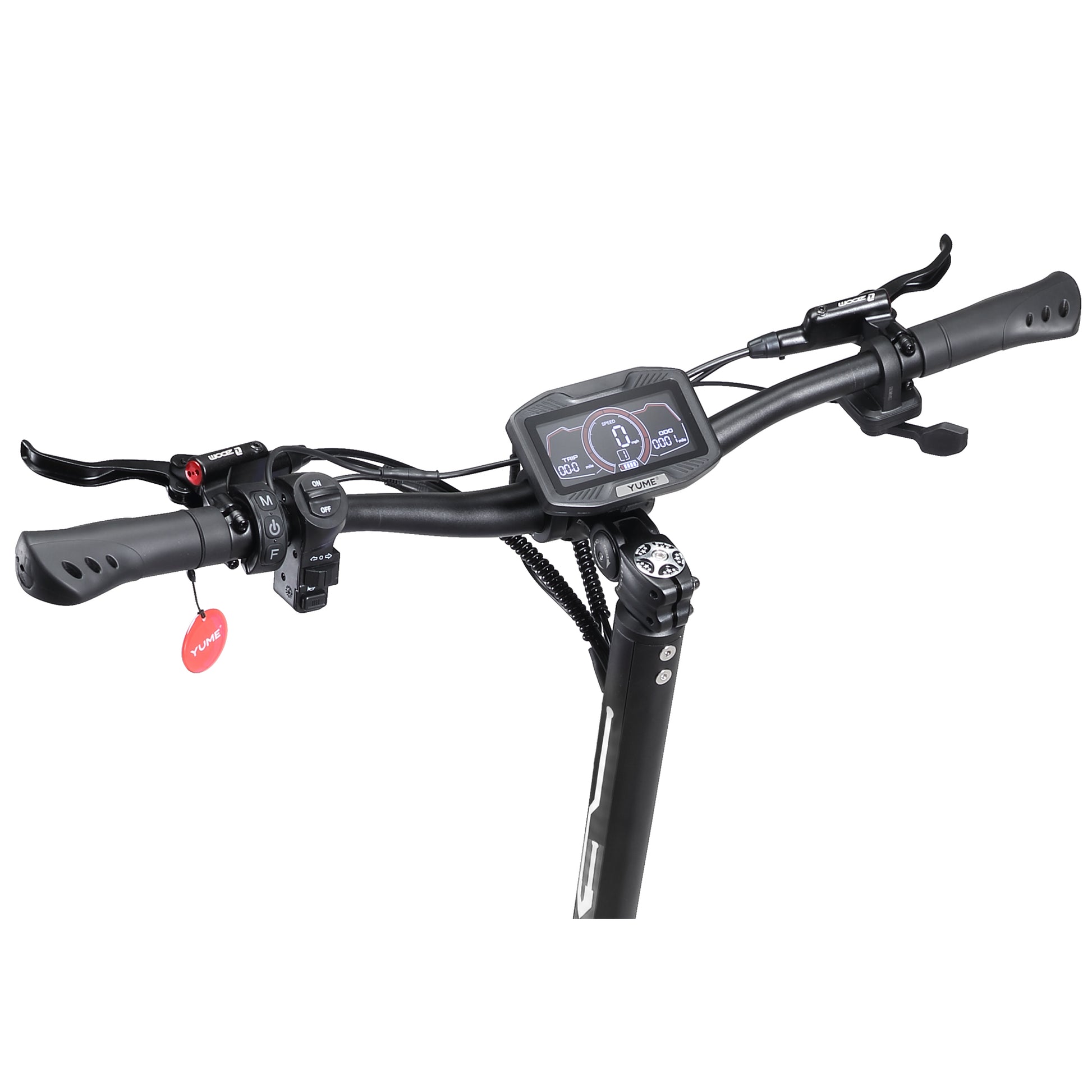

- Display features: Riding mode setting ability, Smart display with overheat protection built in IP65
- NFC: 2 NFC Fast response Near Field Communication cards
- APP: IOS/ANDROID YUME customize

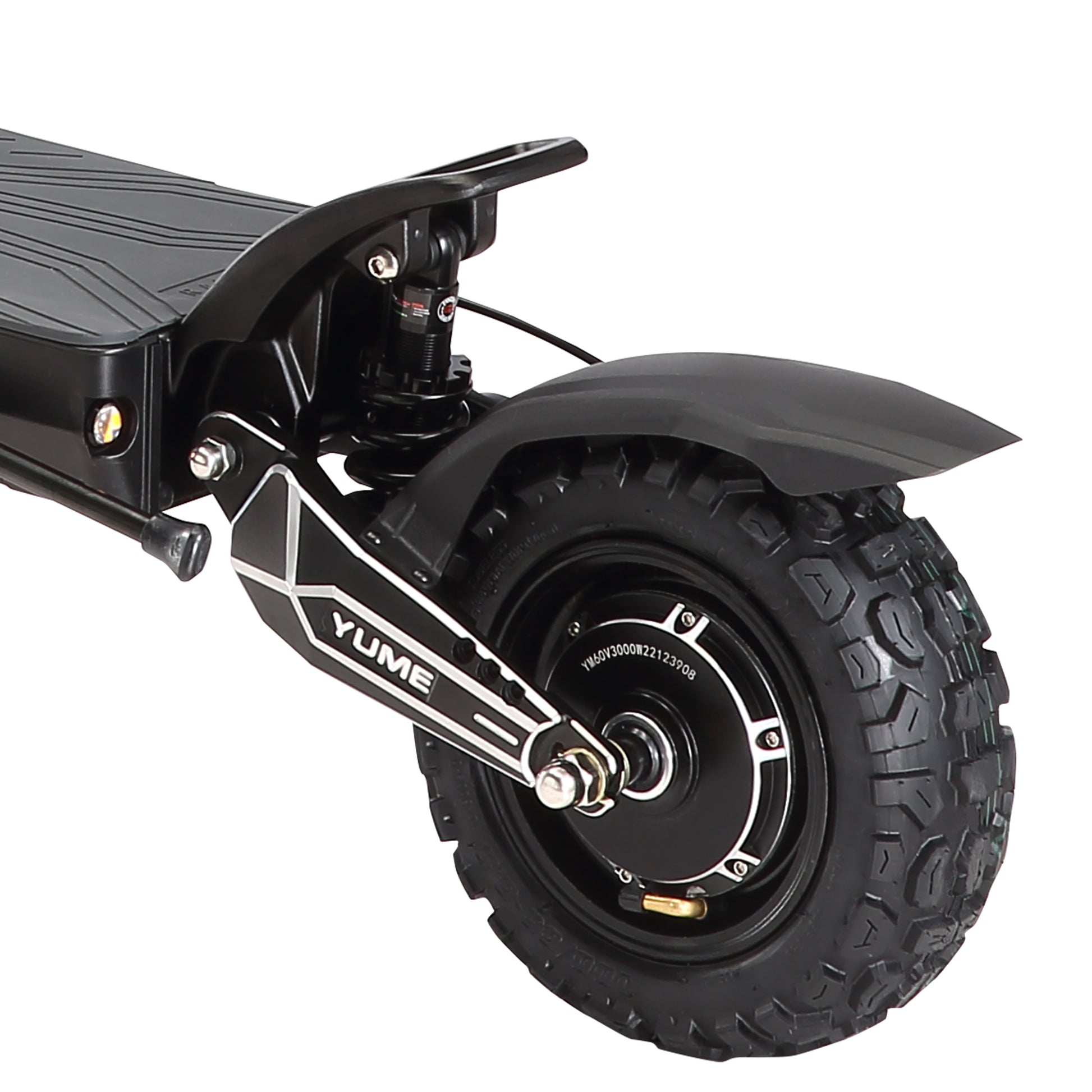

- Tires : 11 x 3.95'' All-terrain / Road tubeless tires
- Throttle: Twist throttle
- Brakes: Dual ZOOM hydraulic brakes + electronic brakes
- Front suspension: 1 x 135mm length Hydraulic shock absorber
- Rear suspension: 1 x 165mm length Hydraulic shock absorber

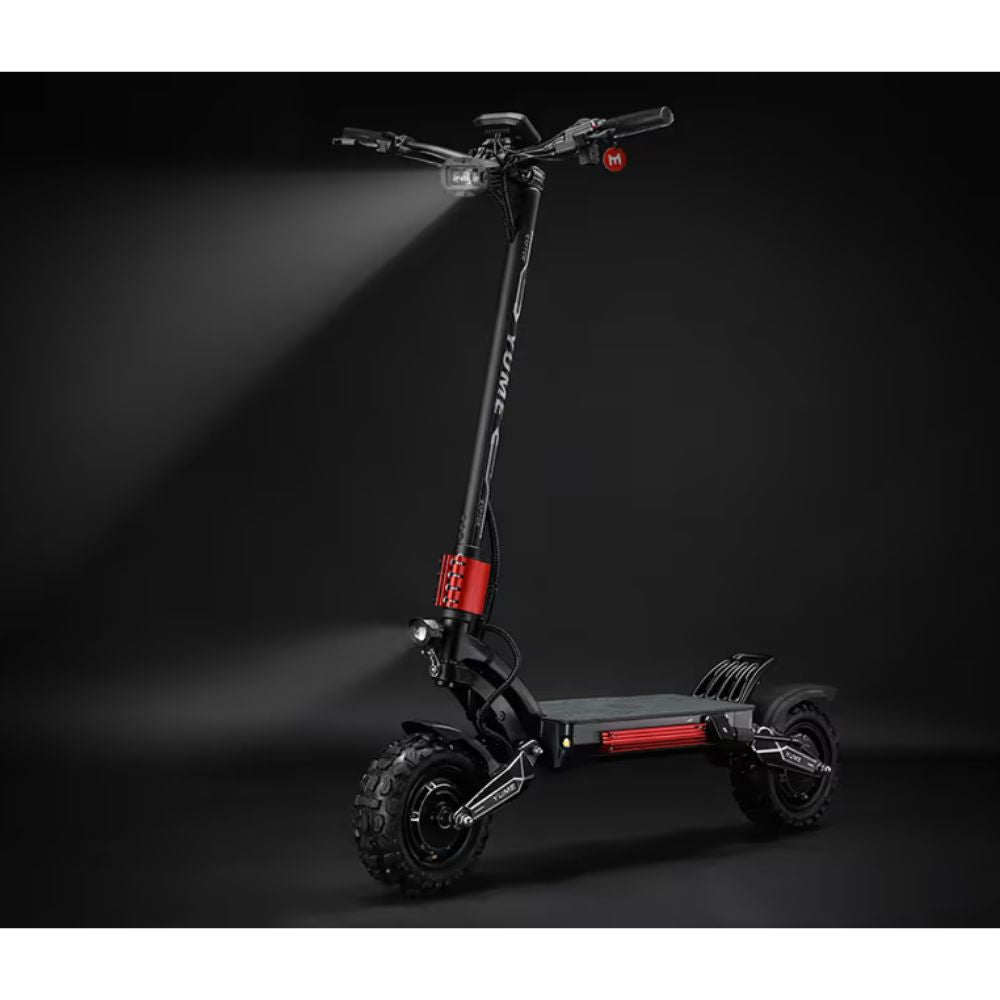

- Lights: Aluminum front headlights/brake lights / 2 turn signals / integrated horn
- IP Rating: IP 54
- Weight: 92lbs / 42kg
- Maximum load: 330lbs / 150kg
- Range and max speed tested under 75kg load at an average speed of 18.5mph(30km/h)
What's in the Box:
- 1 x Electric scooter
- 1 x User manual
- 1 x Front bag & tools
- 2 x NFC keys
- 1 x Remote (for stem light)
- 1 x Mobile phone holder
- 2 x Chargers
- 1 x Tire pump
- 2 x Rearview mirrors
*All range estimates are contingent upon rider and towing weight, wind speed and terrain.
