Ultimate Power and Range with the Hyper-Intelligence Electric Bike Technology

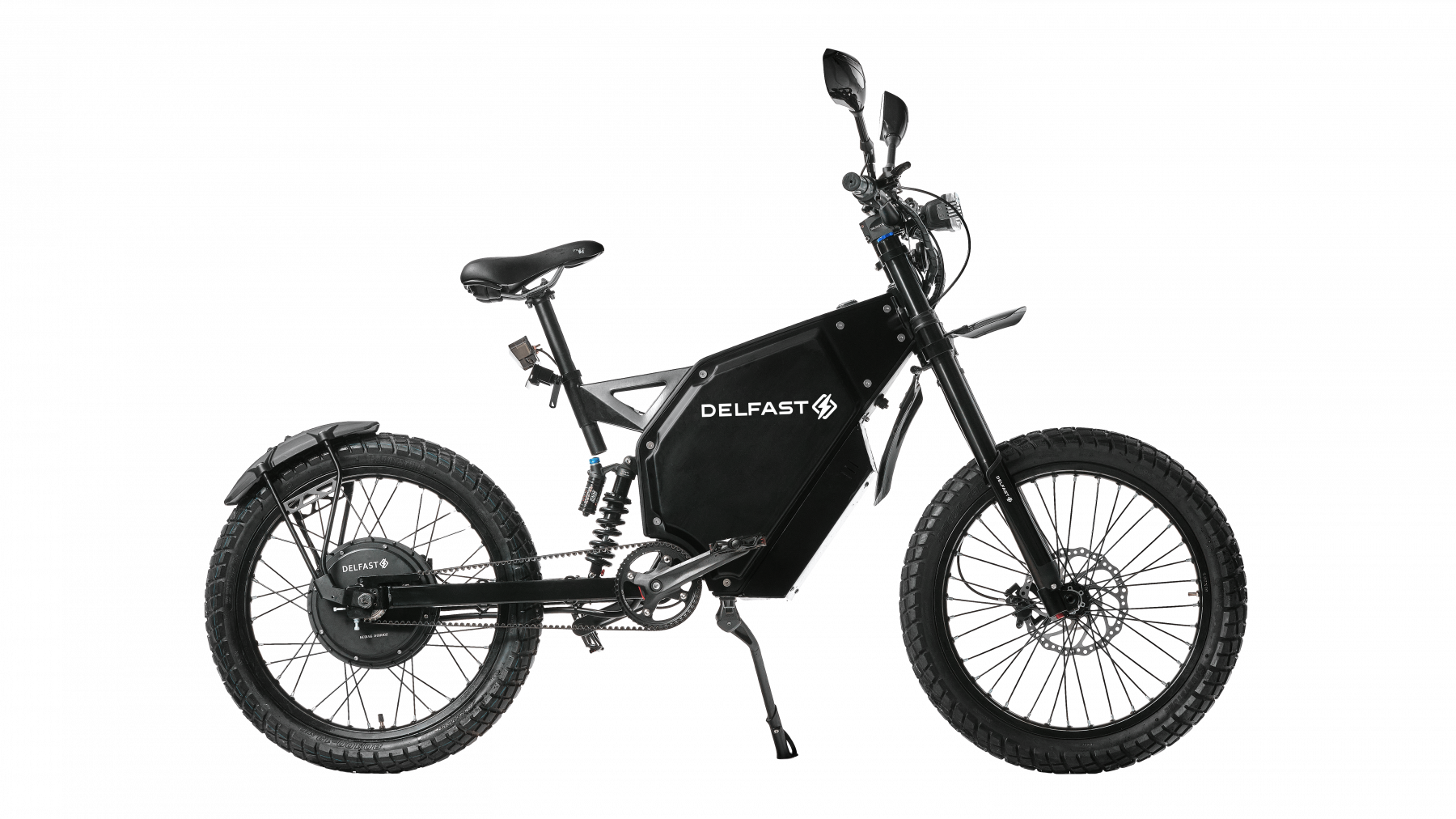

Introducing the Top 3.0 eBike, a groundbreaking all-terrain electric vehicle that combines unparalleled power and an exceptional range, making it the ultimate crossover EV for both work and play. This innovative E-Bike features a carbon belt drive transmission, ensuring optimal performance and efficiency for every ride.
To safeguard the bike controller, it is securely housed in a protective casing, shielding it from potential damage and ensuring its longevity.
Installed with LED high and low beam headlights, as well as LED brake lights, the Top 3.0 eBike ensures excellent visibility both during the day and night.
It is also equipped with Enduro 2.75-19 motorcycle tires, designed to traverse rugged trails or navigate city streets, these reliable tires provide exceptional traction and durability for a smooth and comfortable ride!
Features:
- Onboard computer for on-demand analytics
- Fully remote accessible eBike (no key required)
- Bluetooth connection and systems integration
- Passcode unlock
- Immobilizer theft protection
- GSM 4G Connection and GPS
- Gates Carbon Drive™ carbon-reinforced belt prevents rust
- Regenerative hydraulic disc brakes extend your range
- Unlock bike with app or manually with personalized passcode
- High and low beam LED headlights
- Front and rear LED turn signals and brake lights
- Quick start ON/OFF button
- High performance 2.75-19 motorcycle tires confidently traverse over any terrain
- Handlebar phone mount
- Wi-Fi enabled backup controls computer when off-grid
Specifications:
- Motor: QS 205 V3, 182 Nm torque
- Rated power: 750W (Mode 1 – Class 2)
- Battery: 72V 47Ah Li-ion battery with BMS
- Full charging time: 6 hours
- Full charge range: 200 miles (321 km)*
- Charger: Tubular steel spatial frame
- Controller: 72V 60A Torque sensor & throttle

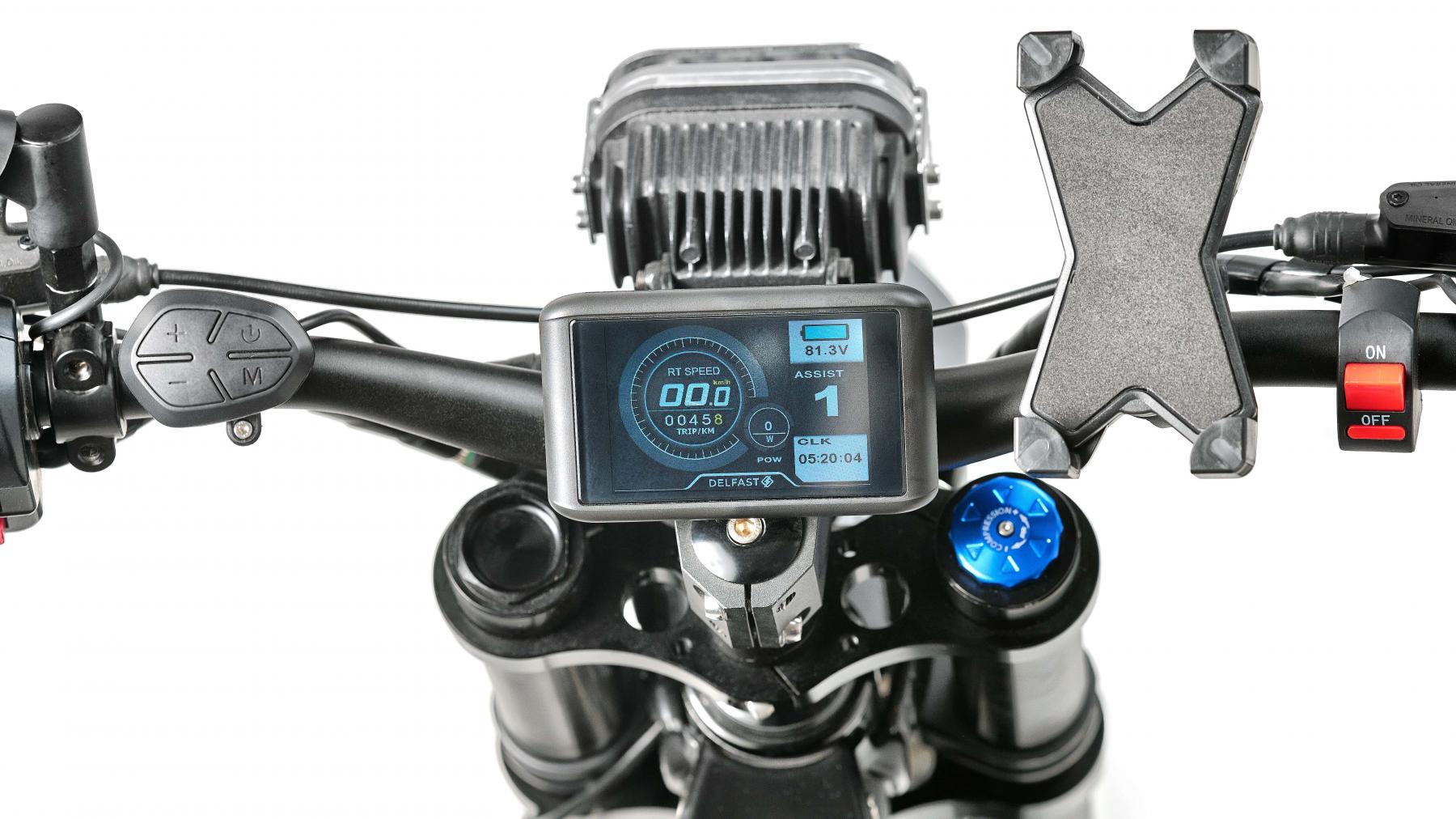

- Display: TFT display
- Pedal transmission: Gates Carbon Drive™ single gear belt drive 22T Belt Rear Sprocket 132Т Gates Belt 46Т Belt Sprocket with Crankset
- Brake discs: 203 mm (front and rear)
- Frame: Tubular steel spatial frame
- Suspension: Front Fork: KKE fork with 203 mm stroke
- Brakes: Regenerative hydraulic disc brakes
- Rear Shock: DNM RCP-2S (1,000lbs)
- Tires: 2.75-R19 motorcycle tires
- Lights: LED high and low beam headlights Front and rear LED turn signals LED brake light
- Seat pin: 31.6 mm manual adjustable seat post
- Saddle: Bike seat
- Frame cover: Plastic
- Motor protection: IP56 (water & dust resistance classification)
- Case protection: IP32 (water & dust resistance classification)
- Length: 76.4 in (1940 mm)
- Height w/o mirrors: 45.3 in (1150 mm)
- Height: 53.5 in (1360 mm)
- Width: 29.5in (750 mm)
- Weight (w/o rider): 154lbs (70 kg)
- Max load capacity: 265lbs (120 kg)
- Class of E-bike: Class 2
Additional Features
- Bluetooth bike alarm
- Remote Control Keys (main & spare)
- Quick start Engine START/STOP button
- Immobilizer
- 4G GSM connection & GPS (without sim card)
Optional Accessories:
*All range estimates are contingent upon rider and towing weight, wind speed and terrain.
